Quick Details

  • Condition: New
  • Type: Coating Production Line
  • Substrate: glass,metal,ceramic,mosaic,crystal
  • Coating: Vacuum Coating
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Huicheng
  • Model Number: LH-
  • Voltage: 380V
  • Power(W): 45KW
  • Dimension(L*W*H): customized
  • Weight: Jewelry ipg coating machine
  • Certification: ISO9001
  • Warranty: one year limited warranty,lifetime maintenance
  • After-sales Service Provided: Engineers available to service machinery overseas
  • business type: China manufacturer/supplier
  • structure: vertical,single door
  • control system: manual,automatic semi-automatic all-in-one
  • operating system: PLC control+touching screen
  • size: customizing,usually it's 1100*1000 or 800*900mm
  • coating film: TiN,TiC,ZrN,CrN,Nickle,Cr,Cu,real gold ect
  • chamber material: SUS304 stainless steel
  • technology: ion coating+sputtering coating
  • Product: Jewelry pvd coating equipment
  • coating effect: metallized and colorful

Packaging & Delivery

Packaging Details: wood container
Delivery Detail: Shipped in 50 days after payment





Product Description
  DETAILED DESCRIPTION


This machine uses arc ion evaporation and magnetron sputtering cathode glow discharge technique to ionize and deposit the molecule(target) on the base material(PVD), as well as the resistance heating technique in the vacuum to melt the metal wire and or vaporize the metal molecule. Thus it can metallize the plastic surface of the base material, mobile phone shell, etc. Use the special filming to achieve the function of nonconductive products and electromagnetism shield, thereby to reach the standard of high-end electronic products manufacturing industry .



Coating colors:



*IPG, IP yellow, Zr-gold, Ti-gold, champagne gold
* 14K,18K,24K, rose gold real gold
*IPU blue, dark blue, grey blue, red purple
*IP light titanium, light grey, dark grey, black
*IPB light coffee, dark coffee, brown





 FEATURES

The equipment integrates the plasma treatment, high-end cathode magnetron sputtering, resistance evaporation coating equipment, large load rotation frame and the automatic control technique. It has the reliable work, good repeatability and consistency., fast deposition rate, high adhesion, fine film, etc. The coating film is dense and hardness with low friction coefficient, to keep the smoothness of original workpiece surface, good flexibility, hard to break and fall.

The equipment makes full automation of the coating technology come true. It uses the vacuum coating technique to coat on the surface of the base material. It has the features of low cost, high qualification rate, green environmental protection etc.

 APPLICATION

It can be used to coat metal film, titanium nitride, titanium carbide, and zirconium nitride, chromium nitride and titanium, nickel, chromium, copper , and other compounds film, multi-layer super-hard film, nitrogen-doped titanium film and the alloy film ( TiN, TiC, TiCN, TiAlN, CrN, Cu, Au, Al2O3and other decorative films etc.)  and in a very short time to complete all the machining process, it is a highly efficient multi-functional coating equipment.

This machine is extensively used in the fields of decorative coating for stainless steel, ceramic tile/cups, computer, mobile phone, watch& jewelry,  sanitary, home appliance, hotel products etc.

  TECHNICAL DATA



Mode

Dimension

JTL-0910

JTL-1100

JTL-1250

900*1000mm

1100*1000mm

1250*1500mm



Coating mode and main confirguration

Six multi-arc targets + one set of column targets + one set of plane rectangle magnetron sputtering targets

Eight multi-arc targets + a pair of twin (MF)magnetron sputtering targets

Twelve multi-arc targets + two sets of plane rectangle magnetron sputtering targets+ a pair of twin (MF)magnetron sputtering targets

Power source

Electric arc power, DC magnetron power, MF magnetron power, filament power, pulse power, linear ionized source.

Process gas control

Quality flowmeter + electromagnetism ceramic valve

Vacuum chamber structure

Vertical single(side) door, pump system postposition, double water-cooling

Vacuum system

Molecule pump +Roots pump +Mechanical pump(5.0*10-5Pa)

Diffusion pump +Roots pump +Mechanical pump(5.0*10-4Pa)

Workpiece baking temperature



Normal temperature to 350 centi-degree PID control, radiation heating.

Workpiece motion mode

Public rotation Frequency control: 0-20 rotation per minute

Measure mode

Number display composite vacuum gauge: from atmosphere to 1.0*10-5Pa

Control mode

Manual/Automatic/PC/PLC + HMI/PC four choice of control mode

Remark

We can design the dimension of the equipment according to customer’s special technique requirement.

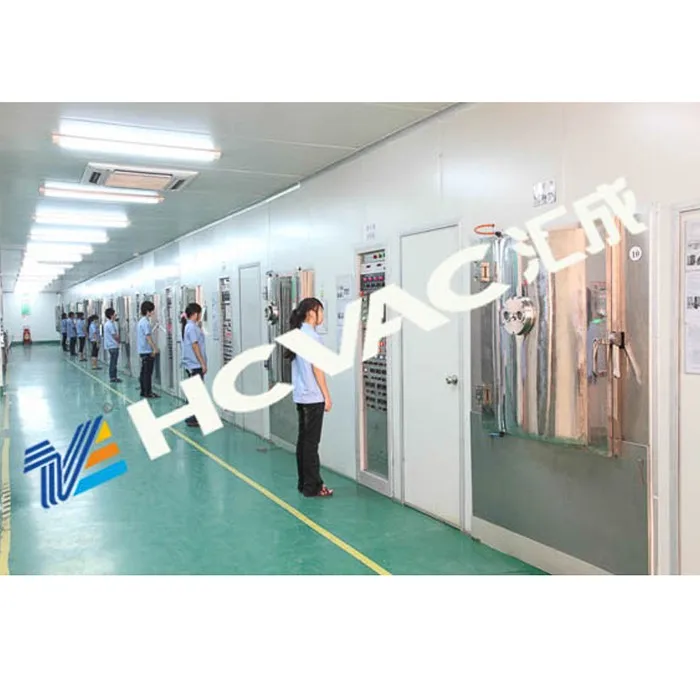

  MACHINE PHOTOS


Box-type appearance design:



  SAMPLE PHOTOS



Jewelry watchcase real gold or Imitation gold coating,black coating,rosegold coating:





Double color coating:














Company Information
  ABOUT HUICHENG
Dongguan Huicheng Vacuum Technology Co., Ltd. is a high-tech enterprise specialized in the R& D,
 production, and marketing kinds  of Vacuum coating machine and related products. We start in this field in1997,and already install machines more than 65 countries.

HCVAC can help you to enter the PVD coating easily by our vacuum coating machine and full range service. We will provide with most suitable technology according to your requirements.

   We will make the special coating solution for each customer; combine the full set production technics to meet your requirements, to ensure high efficiency of production.



Our Services



1.Professional sales person and technical team to lead you to invest the project with best budget.Turn-key project offering.

2.Quality control,high technology productivity to make sure the good quality machine production.

3.1 year warranty was provided since the date of delivery. In 1 year's warranty,For small problems about the machine,our profesional after-sales team will help to solve on line.For big problem,we  will dispatch the engineer to your factory to solve problem.Large experienced engineer team is ready to serve all of you in the whole world.

Certifications

  HUICHENG HONOR

Successful Case
  PHOTO WITH CLIENTS & SUCCESSFUL CASE


More information about our vacuum coating machine,pls do not hesitate to contact:

Contact person:Mandy Liu

Phone No./whatsapp/wechat:+8613825755941

Skype:liuyingyu7

Email:mandy(at)hcvac.com
