Quick Details

  • Condition: New
  • Type: Coating Production Line
  • Substrate: glass,metal,ceramic,mosaic,crystal
  • Coating: Vacuum Coating
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Huicheng
  • Model Number: LH-
  • Voltage: 380V
  • Power(W): 45KW
  • Dimension(L*W*H): titanium gold coating machine
  • Weight: titanium gold coating machine
  • Certification: TUV, CE, SGS, ISO9001
  • Warranty: one year limited warranty,lifetime maintenance
  • After-sales Service Provided: Engineers available to service machinery overseas
  • business type: China manufacturer/supplier
  • type: ion coating
  • structure: vertical,double doors
  • control system: manual,automatic all-in-one
  • operating system: PLC control+touching screen
  • size: customizing
  • coating film: TiN,TIC,ZrN,CrN,Nickle,Cr,Cu,ect
  • color: gold,rosegold,silver,black,blue,rainbow etc
  • chamber material: carbon steel or stainless steel
  • product: titanium gold coating machine

Packaging & Delivery

Packaging Details: wood container
Delivery Detail: Shipped in 50 days after payment

Porcelain tile titanium gold coating machine/ceramic floor tile PVD gold plating machine





Product Description
  DETAILED DESCRIPTION


This is a ion coating machine of efficiency, harmless and pollution-free. It has the features of fast deposition rate , great ionization rate, big ion energy,easy operation, low cost, large productive capacity, etc.It's the more advanced technology to replace traditional electroplating way.





The machine is mainly design for sanitary ware/bathroom fitting parts. It’s equipped with several big size electrical arc evaporation sources and magnetron sputtering coating system, to deposit high performance metal decorative film on brass, zinc alloy, stainless steel, plastic and other metal parts surface. It can get all types of metal color series on substrate. The coating film includes TiN, Zr,T iCN, ZrCN, CrN, CrCN, brass, bronze, chrome etc. Color series includes AF, SN, BN, VF, BV, G, BX, TB, AF, SN, 96CB, CB, TXB, VS, S, BS, BRZ, BGD, PGD and so on. It can get different colors by adjusting coating technics. It is largely used in the sanitary ware/ Kitchen ware field.

 FEATURES

It has the reliable work, good repeatability and consistency., fast deposition rate, high adhesion, fine film, etc. The coating film is dense and hardness with low friction coefficient, to keep the smoothness of original workpiece surface, good flexibility, hard to break and fall.

The equipment makes full automation of the coating technology come true. It uses the vacuum coating technique to coat on the surface of the base material. It has the features of low cost, high qualification rate, green environmental protection etc.

 APPLICATION

It can be used to coat metal film, titanium nitride, titanium carbide, and zirconium nitride, chromium nitride and titanium, nickel, chromium, copper , and other compounds film, multi-layer super-hard film, nitrogen-doped titanium film and the alloy film ( TiN, TiC, TiCN, TiAlN, CrN, Cu, Au, Al2O3and other decorative films etc.)  and in a very short time to complete all the machining process, it is a highly efficient multi-functional coating equipment.

This machine is extensively used in the fields of decorative coating for stainless steel, ceramic tile/cups, computer, mobile phone, watch& jewelry,  sanitary, home appliance, hotel products etc.

  TECHNICAL DATA
ModeLH-1215LH-1618LH-2121
DimensionD1250*H1500mmD1600*H1800mmD2100*H2100m
Coating mode and
main confirguration
Twelve arc targetsEighteen arc targetsTwenty two arc targets
Power sourceElectric-arc power, Filament power,  Pulsed bias power supply
Process gas controlMass flowmeter + Electromagnetic ceramic valve
Vacuum chamber
structure
Vertical side opening door, pump system postposition, double water cooling
Vacuum systemDiffusion pump +Roots pump +Mechanical pump(5.0*10-4Pa)
Workpiece baking temperatureNormal temperature to 350 centi-degree PID control, radiation heating.
Workpiece motion modePublic rotation Frequency control: 0-20 rotation per minute
Measure modeNumber display composite vacuum gauge: from atmosphere to 1.0*10-5Pa
Control modeManual/Automatic/PC/PLC + HMI/PC  four choice of control mode
RemarkWe can design the dimension of the equipment according to customer’s special technique requirement.
  MACHINE PHOTOS
 Vertical type:

Horizontal line:





  SAMPLE PHOTOS



 Metal:



Ceramic:



Mosaic:







Color sample:




Company Information
  ABOUT HUICHENG
Dongguan Huicheng Vacuum Technology Co., Ltd. is a high-tech enterprise specialized in the R& D,
 production, and marketing kinds  of Vacuum coating machine and related products. We start in this field in1997,and already install machines more than 65 countries.

HCVAC can help you to enter the PVD coating easily by our vacuum coating machine and full range service. We will provide with most suitable technology according to your requirements.

   We will make the special coating solution for each customer; combine the full set production technics to meet your requirements, to ensure high efficiency of production.



Our Services



1.Professional sales person and technical team to lead you to invest the project with best budget.Turn-key project offering.

2.Quality control,high technology productivity to make sure the good quality machine production.

3.1 year warranty was provided since the date of delivery. In 1 year's warranty,For small problems about the machine,our profesional after-sales team will help to solve on line.For big problem,we  will dispatch the engineer to your factory to solve problem.Large experienced engineer team is ready to serve all of you in the whole world.

Certifications

  HUICHENG HONOR

Successful Case

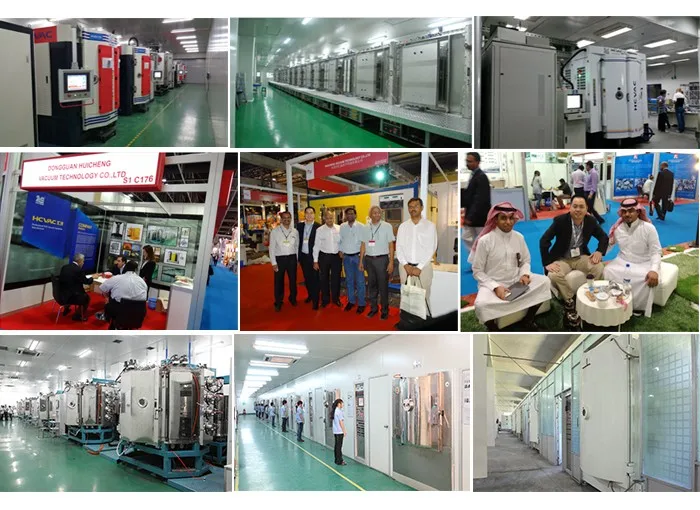

  PHOTO WITH CLIENTS & SUCCESSFUL CASE


More information about our vacuum coating machine,pls do not hesitate to contact:

Contact person:Mandy Liu

Phone No./whatsapp/wechat:+8613825755941

Skype:liuyingyu7

Email:mandy(at)hcvac.com
