Quick Details

  • Condition: New
  • Type: Coating Production Line
  • Substrate: glass,ceramic,metal,steel,mosaic,crystal,alloy ect
  • Coating: Vacuum Coating
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: HCVAC
  • Model Number: LH-
  • Voltage: 380v or customized
  • Power(W): 45kw
  • Dimension(L*W*H): ion coating system
  • Weight: ion coating system
  • Certification: TUV, CE, SGS, ISO9001
  • Warranty: one year limited warranty,lifetime maintenance
  • After-sales Service Provided: Engineers available to service machinery overseas
  • product: ion coating system
  • business type: China manufacturer/supplier
  • structure: vertical,single door
  • type: ion coating+sputtering coating
  • control system: manual automatic all-in-one
  • operating system: PLC touching screen
  • coating color: gold,rosegold,silver,black,blue,coffee,rainbow ect
  • chamber material: stainless steel
  • size: customized
  • coating film: TiN,TIC,ZrN,CrN,Nickle,Cr,Cu,ect

Packaging & Delivery

Packaging Details wood container
Delivery Time Shipped in 50 days after payment

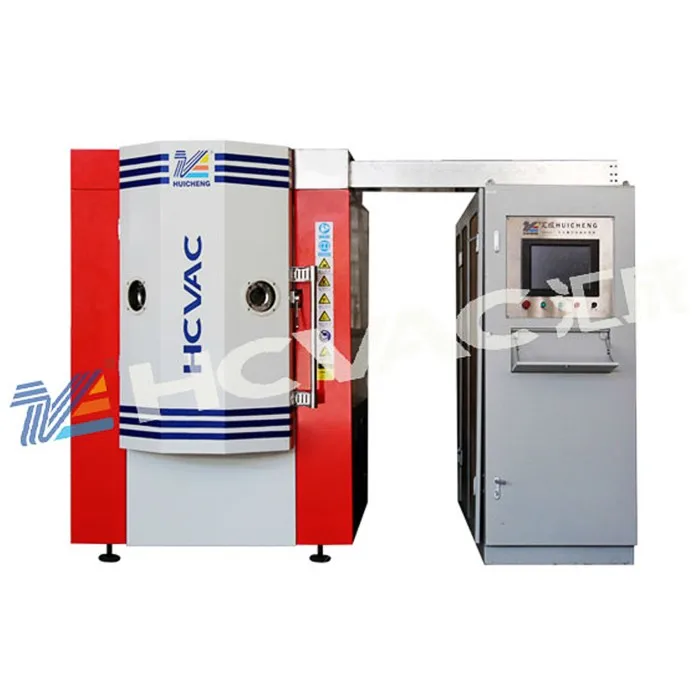

HCVAC PVD titanium nitride plasma coating machine

                                    ----Cathodic arc+Sputtering technology,to get more advanced surface

Product Description

This is a ion coating machine of efficiency, harmless and pollution-free. It has the features of fast deposition rate , great ionization rate, big ion energy,easy operation, low cost, large productive capacity, etc.It's the more advanced technology to replace traditional electroplating way.


Popular colors which could get by PVD:

Real gold an real rosegold coating

Imitation gold series: TiN, ZrN, TiN+Au, ZrN+Au

Rose Gold Series: TiCN, TiAlN, TiCN+Au--Cu, TiAlN+Au, Cu

Silver white series: CrN, CrSiN, Zr (micro N)

Grey series: Ti, stainless steel (S.S), (S.S) N

Coffee color series: TiCN, TiAlCN, ZrC

Blue series: TiO, CrO, TiALN

Black Series: TiC, TiC+iC, TiCN, TiAlN, TiAlCN, Ti (C, O) and DLC


The equipment integrates the plasma treatment, high-end cathode magnetron sputtering, resistance evaporation coating equipment, large load rotation frame and the automatic control technique. It has the reliable work, good repeatability and consistency., fast deposition rate, high adhesion, fine film, etc. The coating film is dense and hardness with low friction coefficient, to keep the smoothness of original workpiece surface, good flexibility, hard to break and fall.

The equipment makes full automation of the coating technology come true. It uses the vacuum coating technique to coat on the surface of the base material. It has the features of low cost, high qualification rate, green environmental protection etc.


It can be used to coat metal film, titanium nitride, titanium carbide, and zirconium nitride, chromium nitride and titanium, nickel, chromium, copper , and other compounds film, multi-layer super-hard film, nitrogen-doped titanium film and the alloy film ( TiN, TiC, TiCN, TiAlN, CrN, Cu, Au, Al2O3and other decorative films etc.)  and in a very short time to complete all the machining process, it is a highly efficient multi-functional coating equipment.

This machine is extensively used in the fields of decorative coating for stainless steel, ceramic tile/cups, computer, mobile phone, watch& jewelry,  sanitary, home appliance, hotel products etc.

Coating mode and
main confirguration
Twelve arc targetsEighteen arc targetsTwenty two arc targets
Power sourceElectric-arc power, Filament power,  Pulsed bias power supply
Process gas controlMass flowmeter + Electromagnetic ceramic valve
Vacuum chamber
Vertical side opening door, pump system postposition, double water cooling
Vacuum systemDiffusion pump +Roots pump +Mechanical pump(5.0*10-4Pa)
Workpiece baking temperatureNormal temperature to 350 centi-degree PID control, radiation heating.
Workpiece motion modePublic rotation Frequency control: 0-20 rotation per minute
Measure modeNumber display composite vacuum gauge: from atmosphere to 1.0*10-5Pa
Control modeManual/Automatic/PC/PLC + HMI/PC  four choice of control mode
RemarkWe can design the dimension of the equipment according to customer’s special technique requirement.


Stainless steel:












Company Information
Dongguan Huicheng Vacuum Technology Co., Ltd. is a high-tech enterprise specialized in the R& D,
 production, and marketing kinds  of Vacuum coating machine and related products. We start in this field in1997,and already install machines more than 65 countries.

HCVAC can help you to enter the PVD coating easily by our vacuum coating machine and full range service. We will provide with most suitable technology according to your requirements.

   We will make the special coating solution for each customer; combine the full set production technics to meet your requirements, to ensure high efficiency of production.


Our Services


1.Professional sales person and technical team to lead you to invest the project with best budget.Turn-key project offering.

2.Quality control,high technology productivity to make sure the good quality machine production.

3.1 year warranty was provided since the date of delivery. In 1 year's warranty,For small problems about the machine,our profesional after-sales team will help to solve on line.For big problem,we  will dispatch the engineer to your factory to solve problem.Large experienced engineer team is ready to serve all of you in the whole world.

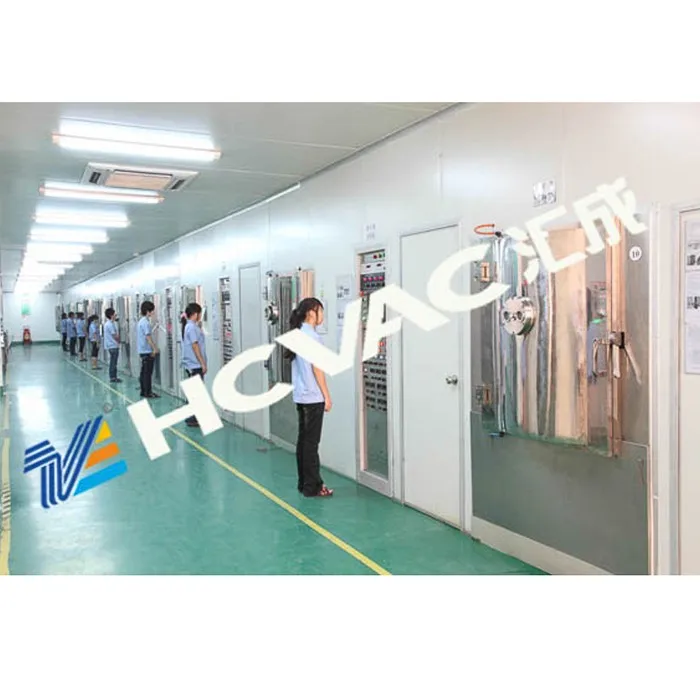

Successful Case

More information about our vacuum coating machine,pls do not hesitate to contact:

Contact person:Mandy Liu

Phone No./whatsapp/wechat:+8613825755941
